Keychron V1 QMK Custom Mechanical Keyboard
Keychron V1 QMK Custom Mechanical Keyboard - Fully Assembled / Frosted Black (Translucent) / Keychron K Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The fully assembled version includes:
- Solid ABS plastic housing
- The keyboard PCB, screw-in stabs, and the steel plate
- Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
- Keychron K Pro switches
The barebone version does not include the keycaps and switches.

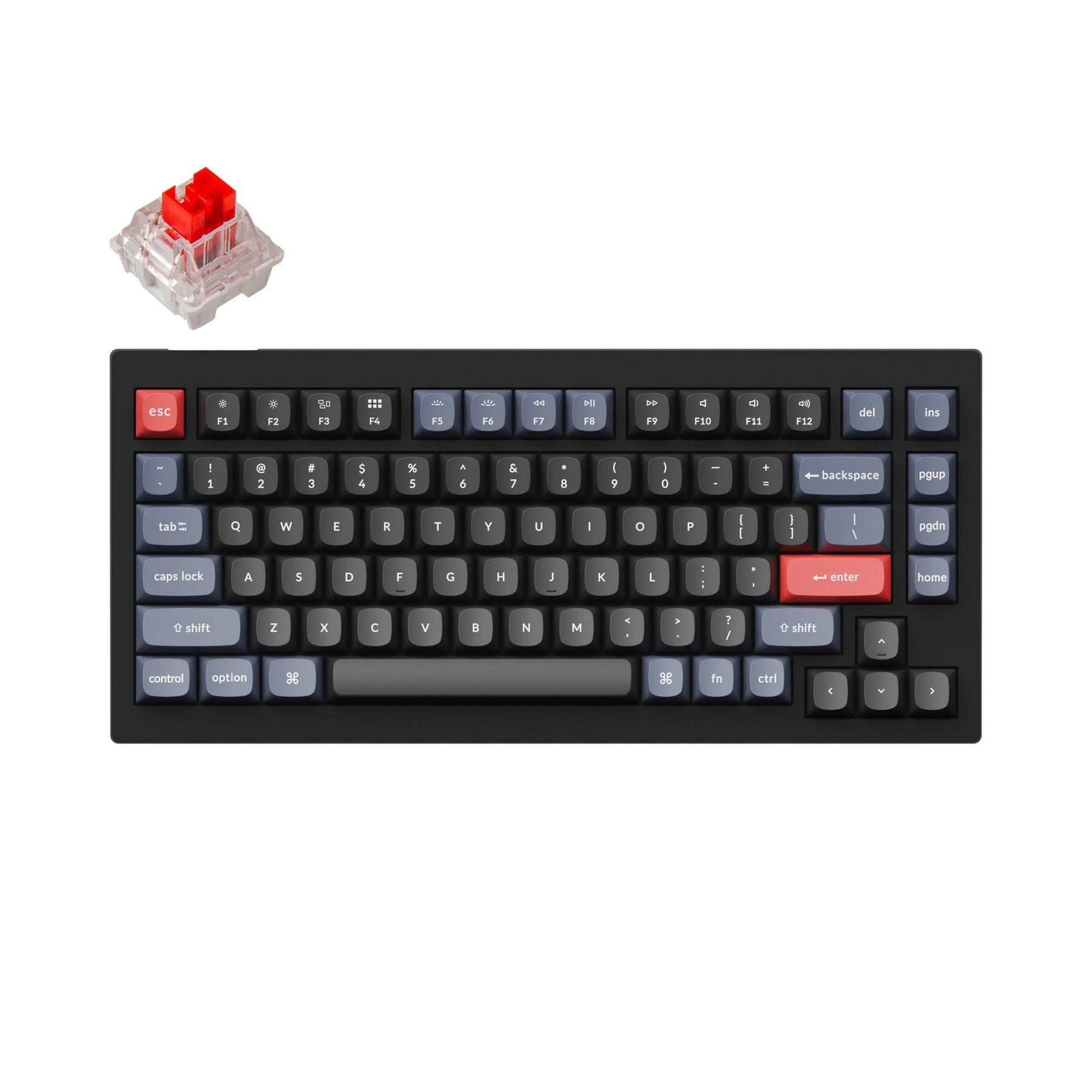

Keychron V1
The V1 is a fully customizable mechanical keyboard ready for any situation. It’s a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.
Frosted Black Version (Translucent)
Carbon Black Version (Non-transparent)
All-around customizable keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
Programmable Knob
Designed to enhance your creative workflow, its premium rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.
You can easily customize the V1's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
An Epic Core Inside The Keyboard
A brand new powerful ultra-low-power Arm structure MCU armed with 128K Flash will provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program V1 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Get the V1 keymap working on VIA
To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA
Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and enter the V1 keymap.
Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.
V1 Knob Version Keymap JSON Files
V1 Non-Knob Version Keymap JSON Files
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Note: The V1's top case has sharper corners to make it much more compatible with third-party keycaps.
Pre-lubed Keychron K Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled V1 version fitted with factory pre-lubricated Keychron K Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V1 also supports third-party stabilizers, including Cherry or Durock.
Typing Sound Test
Keychron V1 Review From Hardware Canucks
What's in the box?
Specs
Width | 148.7 mm |
---|---|
Length | 328.5 mm |
Front Height | 17.9 mm (without keycaps) |
Back Height | 25.8 mm (without keycaps) |
Feet Height | 2.4 mm |
Angle | 3.5° / 8.5° / 11° |
Weight | 970 g ± 10 g (Fully Assembled Version) |
Body Material | Solid ABS Plastic |
Plate Material | Steel |
Polling Rate | 1000 Hz |
Mount Style | Tray Mount Design |
Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
---|---|
MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
Switches | Keychron K Pro (Fully Assembled Version) |
Backlight | South-facing RGB LED |
Switch Support | Hot-swappable (5 pin & 3 pin) |
Stabs | Screw-in PCB stabs |
Connectivity | Type-C |
Cable | Type-C cable + Type-A to Type-C adapter |
Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron V1 such as the V1 shortcuts, assembling the V1, factory reset, and more in the FAQ section.
